Continuous Cast Bars: the Practical Side of ductal iron

I’ve walked more shop floors than I can remember, and one thing keeps popping up: engineers still choose ductal iron when they need strength, machinability, and honest-to-goodness value. The Continuous Cast Iron Bar from SINOMSP has been turning heads lately—partly because it hits European, ASTM and GB standards without drama, partly because the supply is steady. To be honest, that reliability matters as much as specs in 2025.

Market trends I’m seeing

• Designers swapping steel for ductal iron in fluid power and machine tool frames to tame vibration—costs less, performs well.
• More semi-finished bars (pre-machined/peeled) to reduce cycle time. Actually saves surprising hours on older CNC cells.
• Demand for non-standard shapes—semi-circular and near-net rectangles—to curb scrap.

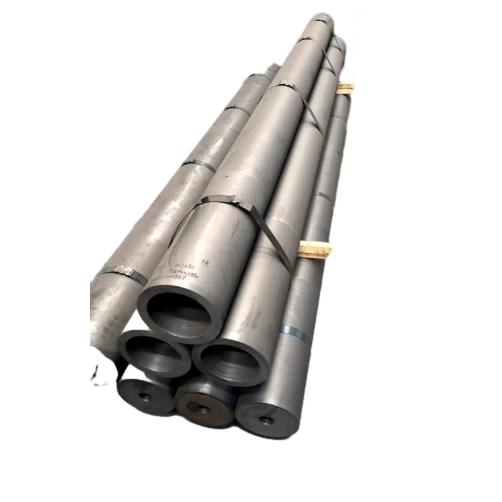

Product snapshot: SINOMSP Continuous Cast Iron Bar

Origin: Room 905 BLDG. A, No. 363 Tiyu South St., Yuhua Strict Shijiazhuang Hebei. Shapes: round, square, rectangular, semi-circular—custom shapes on request. Standards covered: ASTM A536 (nodular), ISO 1083/EN-GJS, and GB equivalents.

Parameter	Typical spec (≈ values; real-world may vary)
Grade options	ASTM A536 65-45-12 / 80-55-06; EN-GJS-400-15 / 500-7; GB QT400-15 etc.
Tensile / Yield	≥ 450–550 MPa / ≥ 300–370 MPa [1][2]
Elongation	10–18% depending on grade [1][2]
Hardness	HBW 170–250 (ASTM E10)
Sizes (round)	Ø 20–600 mm; squares/rectangles on request
Straightness / Roundness	≤ 1.5 mm/m / ≤ 0.5 mm
Microstructure	Ferritic–pearlitic; nodularity ≥ 80% (metallographic check)
Testing	Tensile (ASTM E8), Hardness (E10), UT per foundry spec/EN 12680, chemical (OES)

How it’s made (quick process flow)

Charge mix (select scrap + pig iron) → Mg treatment to create nodular graphite → continuous casting through water-cooled copper mold → controlled cooling/anneal → straightening & peeling → UT and hardness checks → cutting & packaging. Service life? In typical machine frames and hydraulic blocks, I’ve seen 15–25 years with routine care.

Where it works

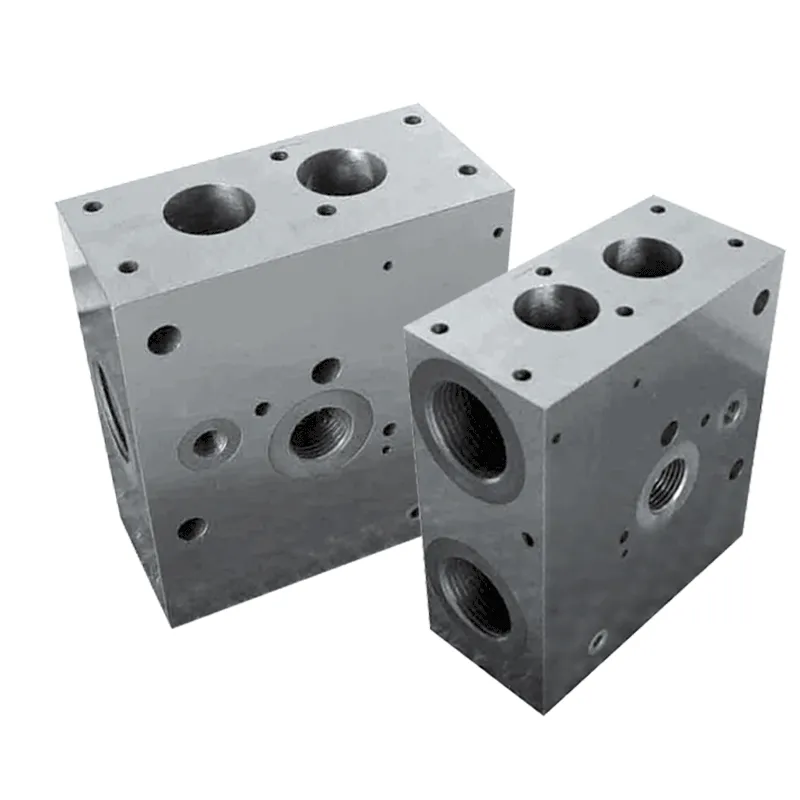

• Hydraulic manifolds and cylinders (great damping, tidy threads).
• Machine tool bases, spindles, and slides—ductal iron calms chatter.

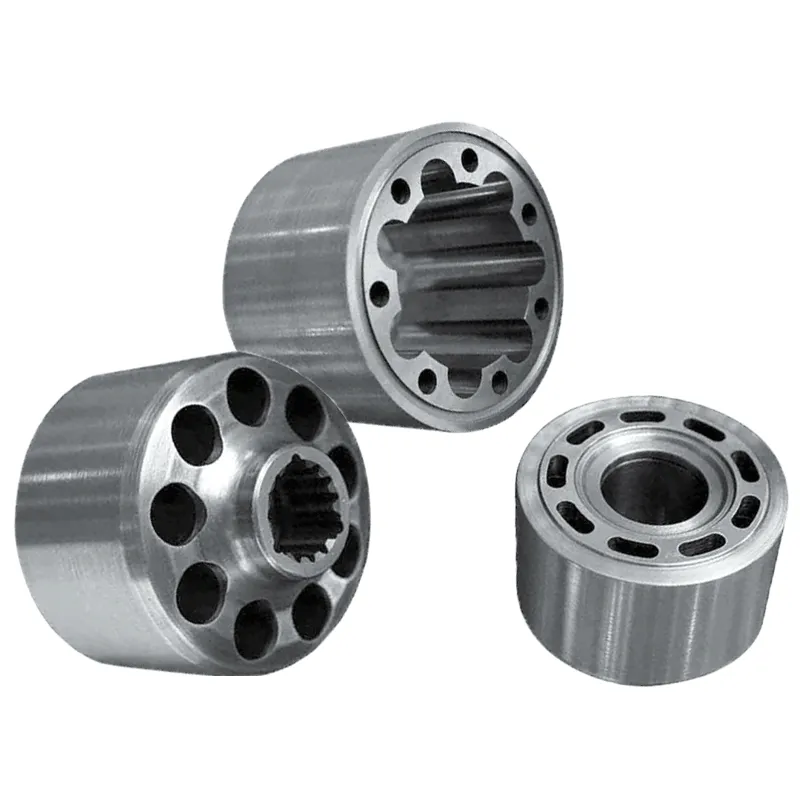

• Automotive knuckles, hubs, brackets; agricultural wear parts; pump housings.

Advantages I notice in the field

• Machinability: predictable chips, fewer tool changes than steels in many shops.
• Damping: ductal iron absorbs vibration, improving surface finish.
• Cost: around 10–25% savings versus comparable alloy steel in many SKUs.
• Consistency: continuous casting trims porosity and centerline issues.

Case notes (real plants, real parts)

Hydraulic OEM, Europe: switched to EN-GJS-500-7 bars for 80×80 mm manifolds. Cycle time down ≈12%, leak rework down 40% thanks to cleaner bores; UT sampling per EN 12680 caught two inclusions before they mattered.

Machine tool builder, Asia: base plates in ductal iron reduced spindle vibration by ≈18% (accelerometer RMS) vs mild steel weldments, same footprint.

Vendor	SINOMSP	Supplier A	Supplier B
Standards	ASTM/EN/GB compliant	ASTM only	EN focus
Shapes	Round/square/rect/semi-circle + custom	Round + square	Round only
UT screening	Batch or 100% by spec	Batch	On request
Lead time	≈2–4 weeks	≈4–6 weeks	≈6–8 weeks
Certs	ISO 9001, Mill Test Cert 3.1	ISO 9001	—

Customization and documentation

If you need a semi-circular bar with odd chord length, or a rectangular blank with machining stock both sides—say +3.0 mm—ask for a peel & stress-relief package. Data pack: chemical, tensile, hardness maps, UT summary, and heat trace. Many customers say this saves a round of incoming inspection.

Fast checklist: define grade, shape, size, UT level, machining allowance, finish, and packing (VPI wrap or crate). For ductal iron in fluid power, I’d spec EN-GJS-500-7, HBW 190–230, UT per EN 12680-3 Class 2.

Citations

1. ASTM A536: Standard Specification for Ductile Iron Castings. https://www.astm.org/a0536
2. ISO 1083: Spheroidal graphite cast irons. https://www.iso.org/standard/71906.html
3. EN 12680: Founding — Ultrasonic testing. https://standards.iteh.ai/catalog/standards/cen/
